Vertical Grinding Services
Specialized vertical grinding for large valve bodies and heavy components up to 72″ diameter.
Vertical Grinding Overview
United Precision Grinding operates one of the Gulf Coast’s most extensive vertical grinder fleets, making us the regional leader for large valve body grinding and heavy component machining. Our vertical grinding capabilities are specifically designed for components that exceed the capacity of conventional horizontal grinding machines.
Vertical grinders excel at machining large cylindrical parts such as valve bodies, pump housings, pressure vessel components, and other industrial equipment. The vertical orientation allows us to handle extremely heavy components while maintaining the precision and surface finish requirements critical to your applications.
Why Vertical Grinding
When Horizontal Won’t Work
Conventional horizontal cylindrical grinders have practical size and weight limits. When components exceed approximately 24″ diameter or weigh more than a few thousand pounds, vertical grinding becomes necessary or highly advantageous.
Vertical Grinding Advantages:
- Handles large diameters (up to 72″ in our facility)
- Accommodates heavy components (up to 40,000 lbs)
- Gravity-assisted workholding reduces setup complexity
- Multiple operations (ID, OD, face) in single setup
- Better concentricity between features
- Reduced handling of heavy components
Large Valve Body Grinding

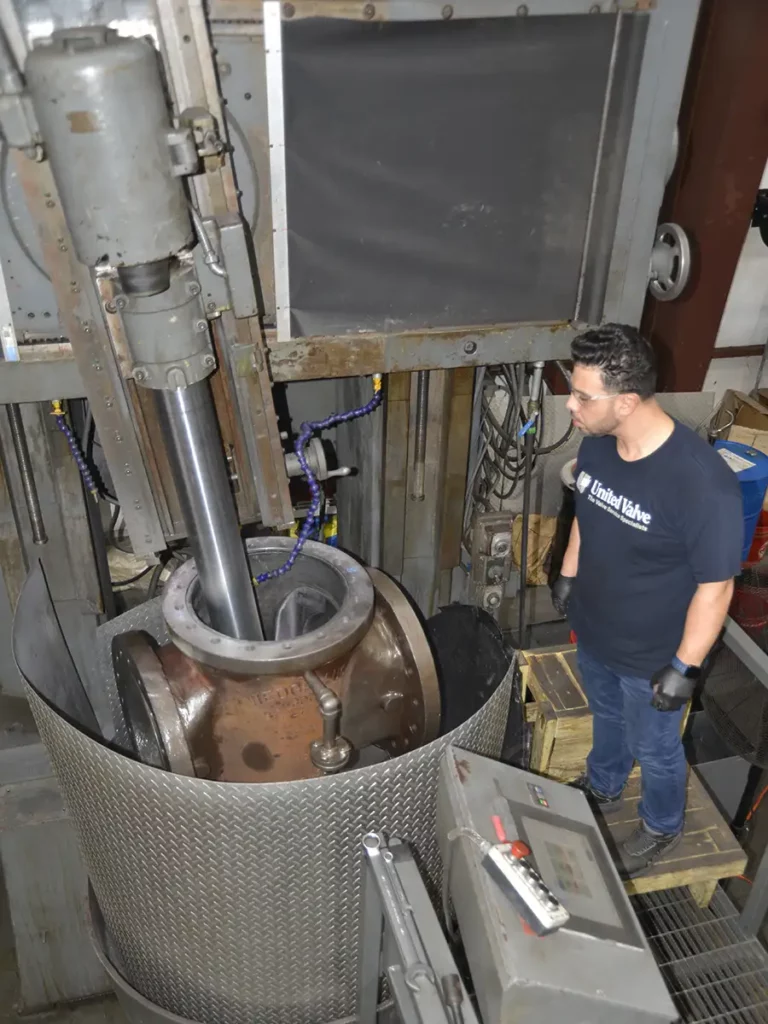

Vertical grinding is the standard process for large gate valves, ball valves, and other valve designs where body diameter exceeds horizontal grinder capacity. The vertical orientation provides:

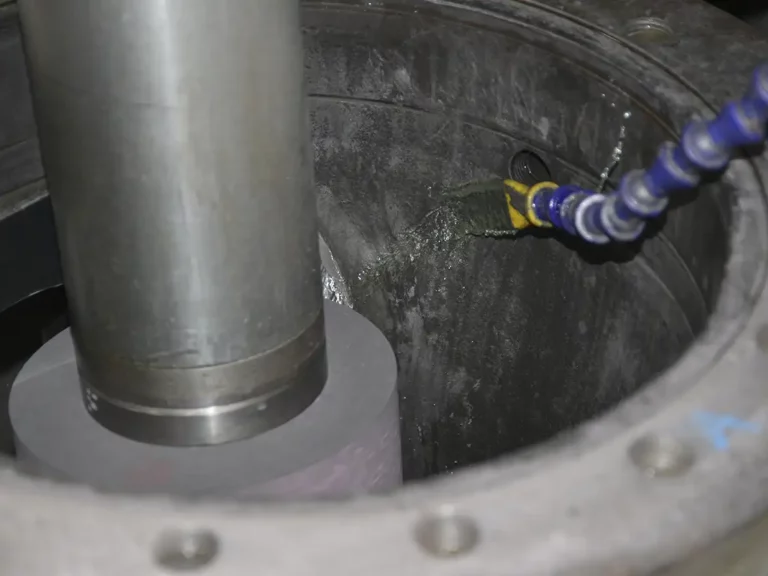

- ID Grinding: Precision bore diameter for guide fit and sealing
- OD Grinding: External diameter for flange fit-up
- Face Grinding: Top and bottom flange surfaces for gasket sealing
- Multiple Features: All operations in one setup for best concentricity
Vertical Grinding Capabilities
Tolerance Capabilities
- Diameter Tolerance: ±0.001″ to ±0.002″ (standard), ±0.0005″ (precision)
- Cylindricity: ±0.0005″ (standard), ±0.0002″ (precision)
- Concentricity: ±0.0002″ to ±0.0005″ between features
- Face Flatness: ±0.0005″ to ±0.001″
- Surface Finish: 16 to 32 Ra (standard), 8 to 16 Ra (precision)
Capacity Ranges
72-Inch Vertical Grinder:
- Maximum diameter: 72″
- Maximum height: 60″
- Weight capacity: 40,000 lbs
- Grinding wheel: 24″ diameter
48-Inch Vertical Grinders:
- Maximum diameter: 48″
- Maximum height: 48″
- Weight capacity: 15,000 lbs
- Grinding wheel: 20″ diameter
36-Inch Vertical Grinders:
- Maximum diameter: 36″
- Maximum height: 36″
- Weight capacity: 8,000 lbs
- Grinding wheel: 16″ diameter
Common Vertical Grinding Applications
Gate Valve Bodies
Gate valves are the most common vertical grinding application. We grind:
Body Bore (ID Grinding):
- Precise diameter for guide fit
- Cylindricity for proper gate travel
- Surface finish for sealing
Flange Faces (Face Grinding):
- Flatness for gasket sealing
- Perpendicularity to bore
- Proper surface finish
Seat Pockets:
- Precision diameter for seat ring fit
- Depth and flatness control
- Surface finish specification
Typical Gate Valve Sizes:
- 6″ through 72″ valve diameter
- 150# through 2500# pressure class
- Carbon steel, stainless steel, exotic alloys
Butterfly Valve Discs and Bodies
Disc Face Grinding:
- Flatness across disc face
- Proper sealing surface
- Surface finish for bubble-tight shutoff
Body Bore:
- Circular bore for disc fit
- Cylindricity specification
- Surface quality
Ball Valve Bodies
Ball valve vertical grinding includes:
Body Bore (ID Grinding):
- Precision diameter for ball and seat fit
- Spherical accuracy when required
- Surface finish for sealing
Seat Pockets (Face Grinding):
- Flatness and diameter for seat fit
- Depth control
- Surface quality
Trunnion Mounting Surfaces:
- Precision diameter and location
- Surface finish
- Perpendicularity
Other Vertical Grinding Applications
Industrial Equipment:
- Pump housings and casings
- Compressor components
- Turbine housings
- Pressure vessel components
- Large bearing housings
Oil & Gas Components:
- Wellhead equipment
- Christmas tree components
- BOP parts
- Pipeline valve bodies
- Subsea equipment
Vertical Grinding Process
1. Component Receipt and Inspection
Large components require special handling:
– Overhead crane for loading/unloading
– Incoming dimensional inspection
– Damage assessment
– Material verification
2. Setup and Workholding
Proper setup is critical for vertical grinding accuracy:
- Component centered on rotary table
- Leveling and alignment
- Secure clamping or fixturing
- Dial indicator verification
3. Roughing Operations
- Remove bulk material efficiently
- Bring dimensions close to the specification
- Verify setup accuracy before finishing
4. Finishing Operations
- Achieve specified dimensions
- Meet surface finish requirements
- Maintain concentricity between features
- Control cylindricity
5. In-Process Inspection
- Regular dimensional verification
- Surface finish checks
- Cylindricity measurement
- Concentricity verification
6. Final Inspection and Documentation
- Complete dimensional inspection
- Surface finish measurement
- Photography of completed work
- Quality documentation
Materials We Grind
Our vertical grinding capabilities extend to all common valve and industrial materials:
Carbon Steel:
- ASTM A105 (most common valve body material)
- ASTM A350 LF2 (low-temperature service)
- ASTM A216 WCB (cast carbon steel)
Stainless Steel:
- 316/316L (corrosion resistance)
- 410 (moderate corrosion resistance, higher strength)
- 17-4 PH (precipitation hardening)
- Duplex and super duplex (high strength, corrosion resistance)
Exotic Alloys:
- Inconel (high-temperature, high-stress applications)
- Monel (corrosion resistance)
- Hastelloy (extreme corrosion resistance)
- Titanium (aerospace, subsea applications)
Cast Iron:
- Ductile iron
- Gray iron (older valves)
Why Choose United Precision Grinding for Vertical Grinding
Largest Vertical Grinder Fleet on Gulf Coast
Six vertical grinders ranging from 36″ to 72″ diameter provide:
- Capacity for virtually any valve size
- Redundancy for fast turnaround
- Appropriate machine sizing for efficiency
Valve Industry Expertise
As a sister company to United Valve, we understand:
- Valve design and function
- Critical dimensions and tolerances
- Surface finish requirements
- Industry standards (API, ASME, MSS)
Heavy Component Handling
- 40-ton overhead bridge crane (main bay)
- 20-ton overhead bridge crane (grinding department)
- Specialized rigging equipment
- Trained, certified crane operators
- Safe handling procedures
Climate-Controlled Environment
- Temperature-controlled grinding areas
- Minimized thermal expansion effects
- Consistent dimensional results
Fast Turnaround
- Multiple machines for parallel processing
- Efficient scheduling and setup
- Extended hours for urgent projects
- Direct coordination with United Valve for valve repair projects
Vertical Grinding FAQs
What's the largest valve body you can grind?
Our 72-inch vertical grinder accommodates valve bodies up to 72″ diameter, 60″ height, and 40,000 lbs weight.
Can you grind both ID and OD in one setup?
Yes, vertical grinders excel at grinding multiple features (ID, OD, face grinding) in a single setup, ensuring excellent concentricity.
How do you handle very heavy components?
We use overhead cranes, specialized rigging, and trained operators to safely handle components up to 40,000 lbs.
What tolerances can you achieve on large diameter grinding?
We routinely achieve ±0.001″ diameter tolerance and 0.0005″ cylindricity on large components. Tighter tolerances are achievable when functionally required.
Do you grind valve bodies for repair or only new components?
We grind both new valve body manufacturing and repair/refurbishment. Our sister company United Valve often sends valve bodies for grinding as part of complete valve overhaul.
